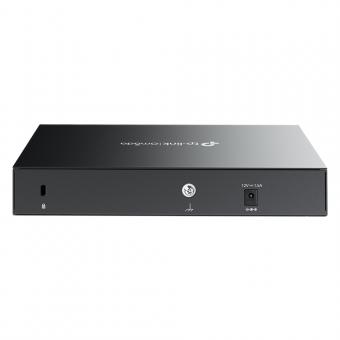

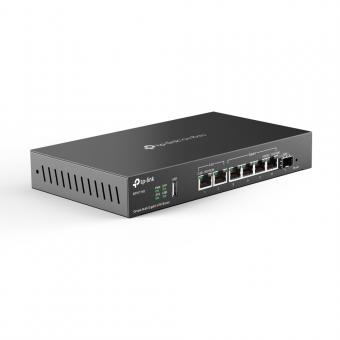

TP-Link Omada Multi-Gigabit VPN Router

Product number: ER707-M2
EAN: 4895252500738

More product information


Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.

6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.

Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

  • LED indicators: LAN, Link, Power, Speed, System, USB, WAN
  • Wall mountable: Yes
  • Housing material: Steel
  • Product colour: Black
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
  • Internal memory type: DDR4
  • Internal memory: 1000 MB
  • Flash memory: 128 MB
Management features:
  • Reset button: Yes
  • Universal Plug and Play (UPnP): Yes
  • Web-based management: Yes
  • Policy-based routing: Yes
  • Static route: Yes
  • VLAN support: Yes
  • Throughput: 1.44 Gbit/s
  • Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
  • Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
  • Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Operational conditions:
  • Storage relative humidity (H-H): 5 - 90%
  • Operating relative humidity (H-H): 10 - 90%
  • Storage temperature (T-T): -40 - 70 °C
  • Operating temperature (T-T): 0 - 40 °C
Packaging data:
  • Quick installation guide: Yes
  • AC adapter included: Yes
Ports & interfaces:
  • USB ports quantity: 1
  • USB version: 2.0
  • Installed SFP modules quantity: 1
  • WAN ports quantity: 1
  • WAN/Ethernet LAN ports quantity: 6
  • Ethernet LAN (RJ-45) ports: 6
  • Output current: 1.5 A
  • Output voltage: 12 V
  • Power source type: DC
  • Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
  • DHCP client: Yes
  • DHCP server: Yes
  • VPN tunnels quantity: 66
  • System event log: Yes
  • Network address translation (NAT): Yes
  • ICMP attack prevention: Yes
  • URL filtering: Yes
  • Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Technical details:
  • Sustainability certificates: CE, Federal Communications Commission (FCC), RoHS
  • Sustainability compliance: Yes
WAN connection:
  • SFP WAN: Yes
  • Ethernet WAN: Yes
Weight & dimensions:
  • Height: 35 mm
  • Depth: 131 mm
  • Width: 226 mm
